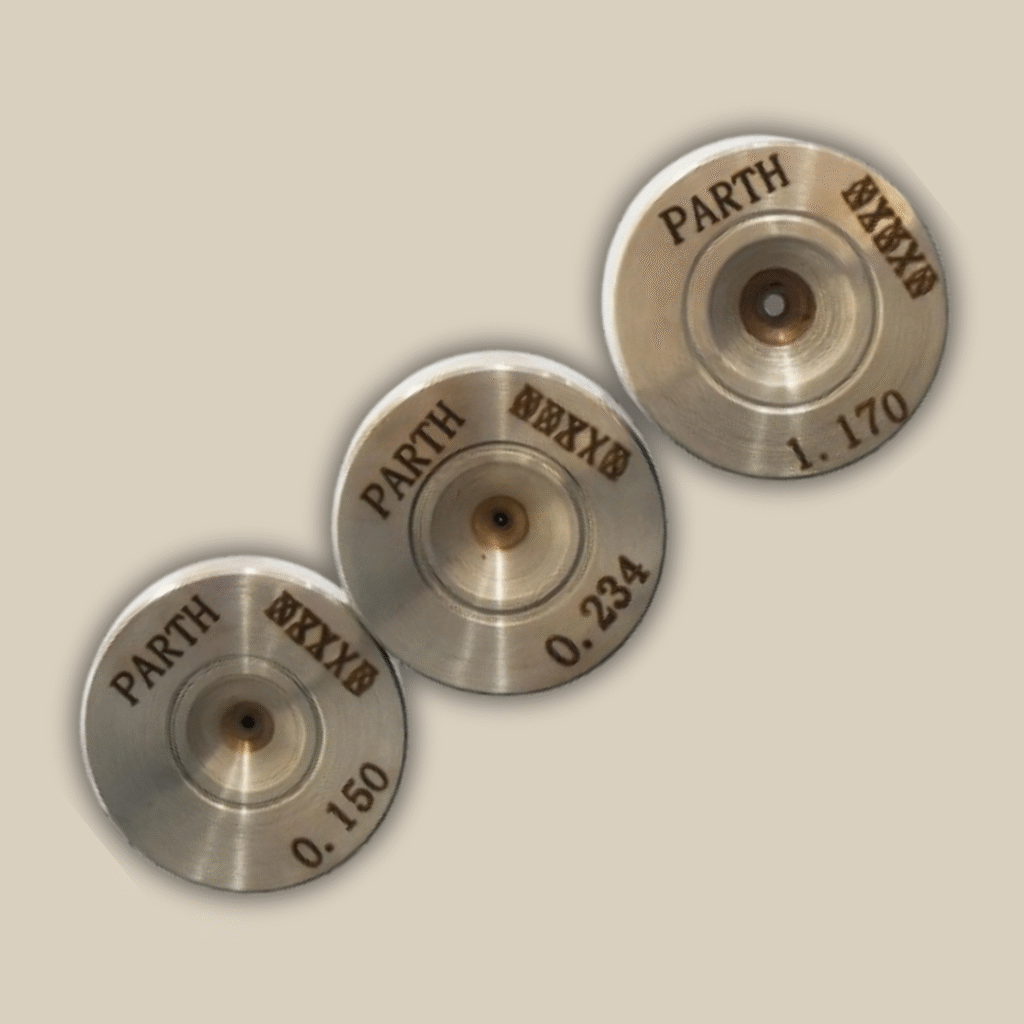

RECUTTING & POLISHING SERVICES

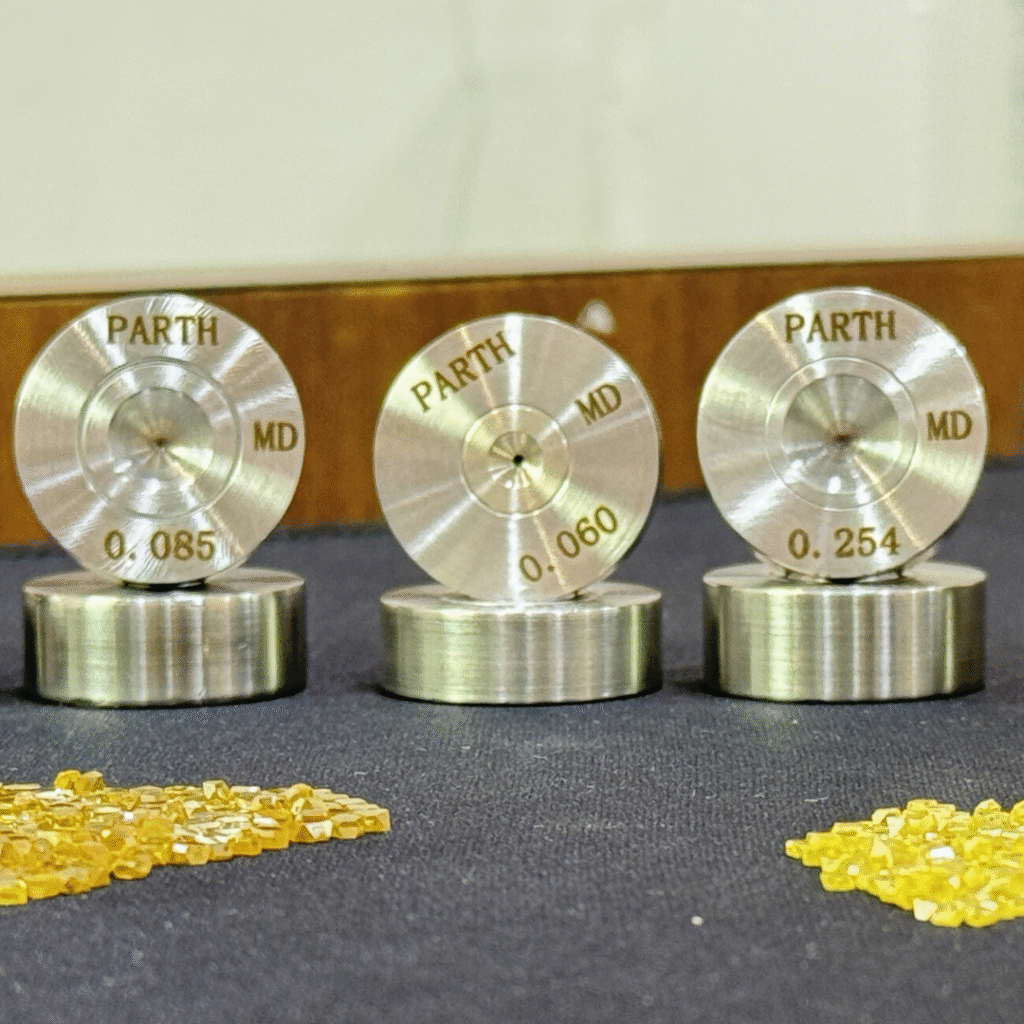

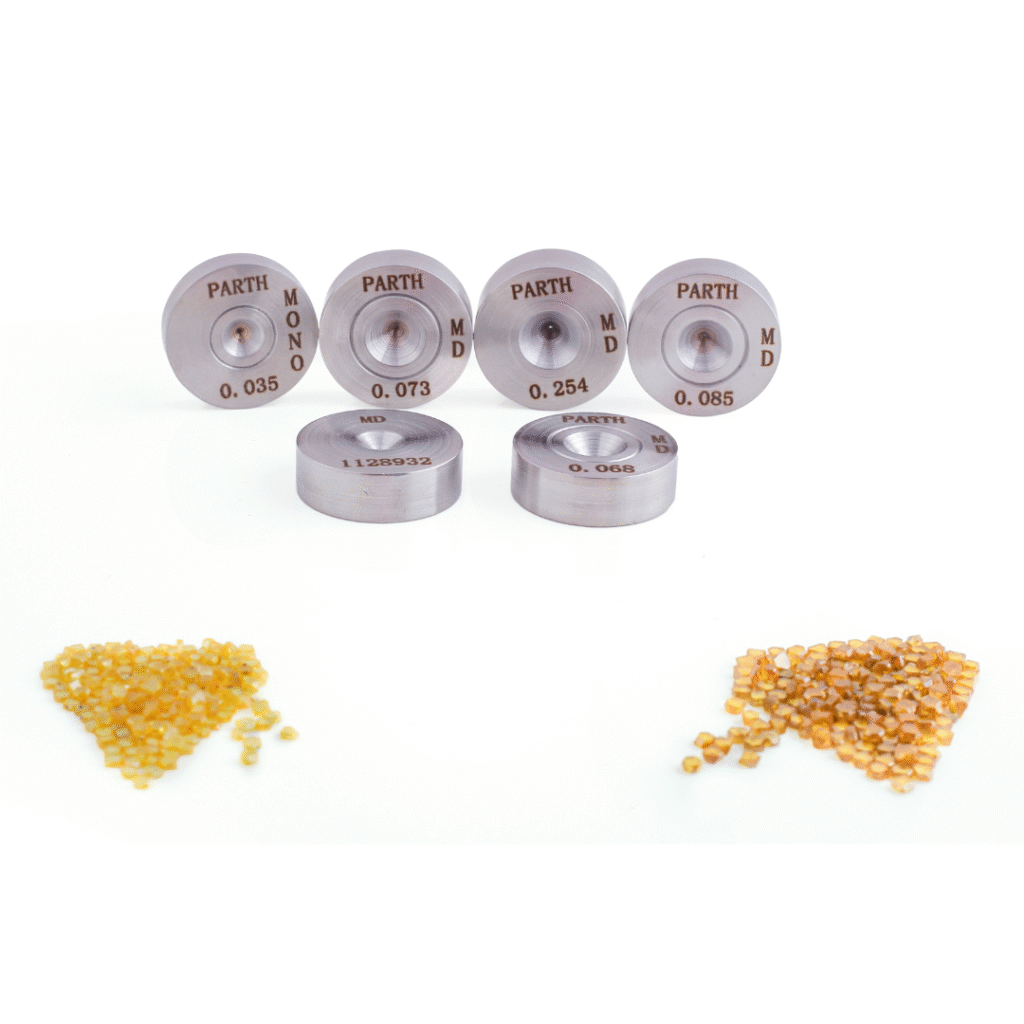

PARTH DIAMOND DIE provides customer recutting and repolishing service for nature diamond dies, PCD dies and synthetic single crystal diamond.
Damaged areas include the entrance area, reduction area & bearing area. The engineer inspects each received dies very carefully and analyse the wear and recutting factors. The worker will recut and repolish each dies according to standard geometry of new dies.
The quality department will check each dies according to standard geometry of new dies, it ensures good production efficiency and excellent wire quality.
For PCD dies, if the defects are not very severe, the dies can be repolished by keeping the original diameter to improve longer life time.
PARTH DIAMOND DIE can help you make up a new die room. For example: find right machine, train the die person, providing diamond powder and so on.
FEATURED SERVICES
REDUCTION ANGLE
| Recommendation of reduction angles by material | ||||||||||
| Elongation | Area Reduction | Application | ||||||||
| Aluminium Silver Gold Lead Zinc | Copper Al alloys | Hard Al alloys NI-Cr alloys | Cu alloys Brass Non Alloyed steels C < 0,4% Stainless steel | Non Alloyed steels C > 0,4% Molybdenum Stainless steel alloys | Cu alloy Brass Non Alloyed steels C < 0,4% Iron Dry drawing | Non Alloyed steels C > 0,4% Alloyed steels Dry drawing | Hot drawing of Tungsten | |||
| % | % | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | |
| 5-9 | 5-8 | 14 | 12 | 10 | 9 | 8 | 7 | 6 | 10 | |
| 9-14 | 8-12 | 16 | 14 | 12 | 11 | 10 | 9 | 8 | 10 | |
| 14-19 | 12-16 | 18 | 16 | 14 | 13 | 12 | 11 | 10 | 12 | |
| 19-33 | 16-25 | 21 | 18 | 18 | 16 | 15 | 14 | 12 | 12 | |
| 33-54 | 25-35 | 24 | 22 | 20 | 19 | 18 | 17 | 15 | 14 | |
| 54-69 | 35-45 | 22 | 20 | 18 | ||||||
Wire GAUGE
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
