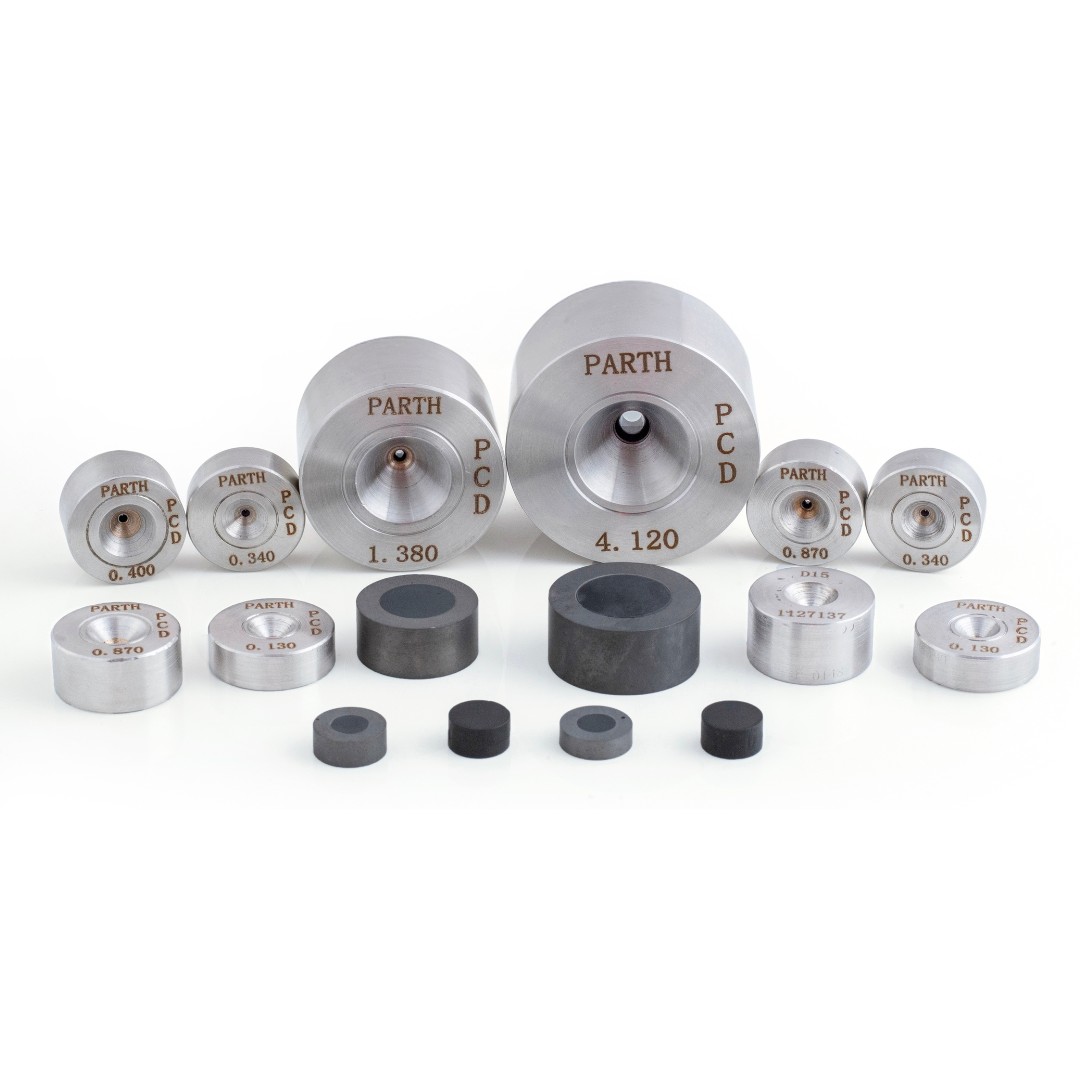

Polycrystalline Diamond Dies

Parth Diamond Die’s Polycrystalline Diamond (PCD) Dies are engineered for durability, versatility, and high performance across a broad diameter range of 0.025 to 30.000 mm. Each die is manufactured to exact customer specifications using premium polycrystalline diamond blanks sourced from industry leaders like Sandvik Hyperion (Compax brand) and Sumitomo.

PCD dies are ideal for drawing stainless steel, copper, aluminium, high/low carbon steel, welding wire, magnets, and a variety of alloy and medical wires. They are available with customized profiles for both wet and dry drawing, and in self-supported or tungsten ring-supported formats.

With options in multiple grain sizes (1 to 50 microns) and thermal capabilities up to 1200°C, our PCD dies are tailored for applications demanding long die life, high surface finish, and minimal machine downtime.

Polycrystalline Diamond Dies – Models & Specifications

S.No.	Model	Diameter Range	Die Type	Application Type	Grain Sizes (Microns)
1	PCD-Wet/Dry	0.025 – 30.000 mm	Self-Supported / Ring-Supported	Wet & Dry Drawing	1 / 3 / 5 / 10 / 25 / 50

Frequently Ask Questions

What materials are suitable for PCD dies?

These dies can draw stainless steel, copper, aluminium, carbon steel, welding wire, EDM tungsten, molybdenum, alloy wires, and medical-grade materials.

What are the types of polycrystalline diamond blanks?

Blanks are available as self-supported or tungsten ring-supported, and as metal-filled (up to 650°C) or thermally-stable (up to 1200°C).

Can I choose different grain sizes for my dies?

Yes, available grain sizes include 1, 3, 5, 10, 25, and 50 microns depending on your finish and speed requirements.

Conclusion

Parth Diamond Die’s Polycrystalline Diamond Dies are a reliable and long-lasting solution for a wide spectrum of wire drawing needs. Manufactured with high-grade blanks and tailored for specific customer applications, these dies offer excellent roundness retention, extended die life, and smooth surface finish.

With compatibility across both wet and dry drawing systems, and the ability to withstand high thermal stress, our PCD dies ensure reduced downtime and optimal wire quality. Parth Diamond Die remains committed to recommending the right die solutions based on your production speed, material type, and quality expectations.
